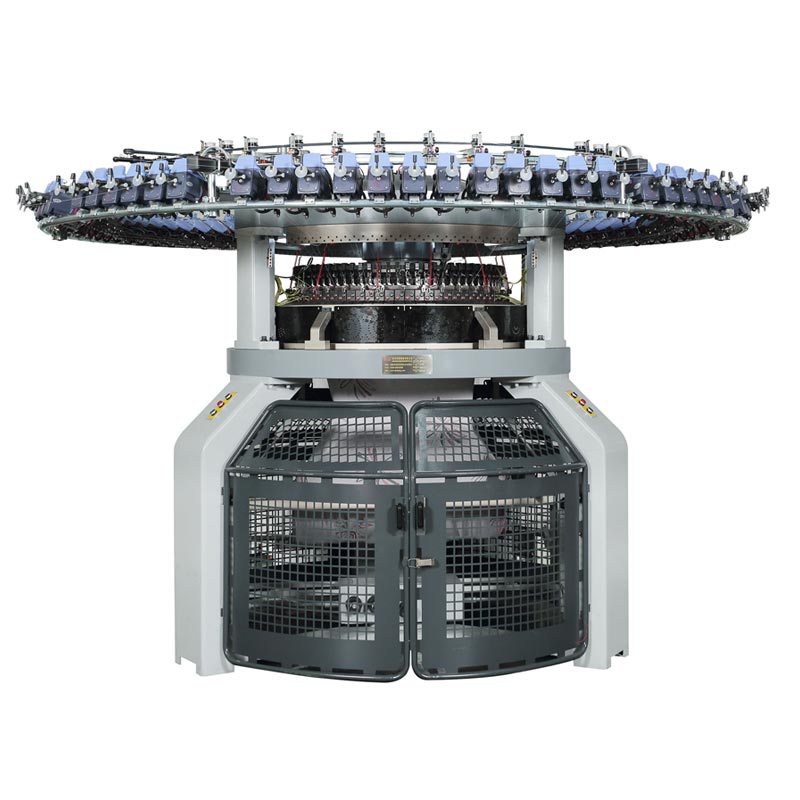

Double Jersey Electronic Jacquard Circular Knitting Machine

Scan code mobile view

BQ brand high-quality single computerized jacquard circular knitting machine, it can knit jacquard jersey, jacquard mesh, spacer fabric and can make home textile, automative textile and so on. The needle selector/actuator can select needle on cylinder, or both dial and cylinder, it can select needles for 3-way knitting, including knit, tuck and miss. It is available with tubular and open-width frame.

Model：	BQ-DCJ	Diameter [inch]：	38 / 40
Gauge [E]：	20-36	No. of Feeder [F]：	72
Speed [R.P.M]：	10-15	Power [KW]：	5.5-7.5

Inquiry

Feature

Standard Parts

Application

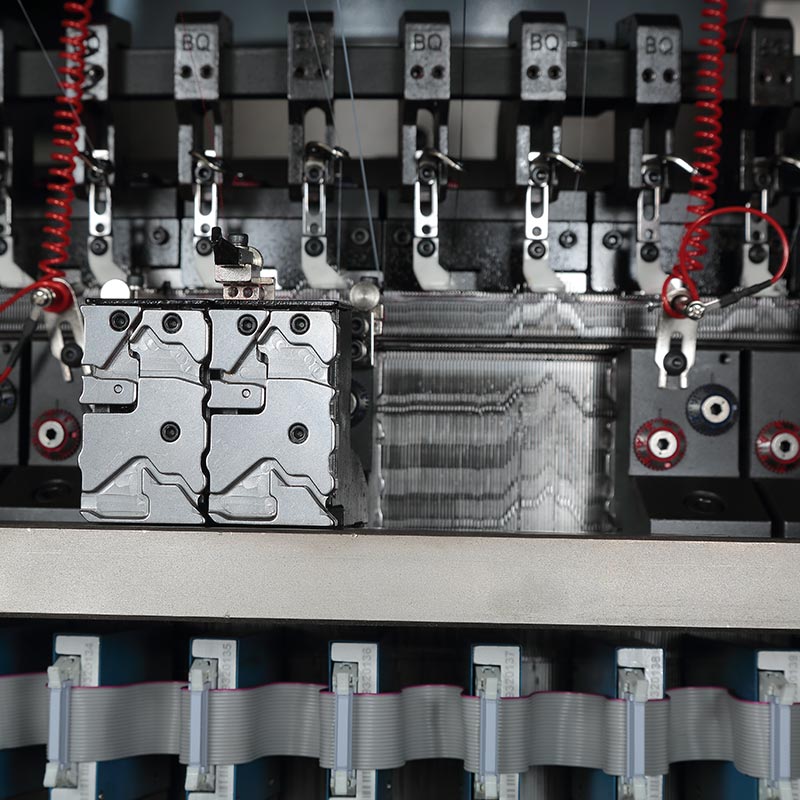

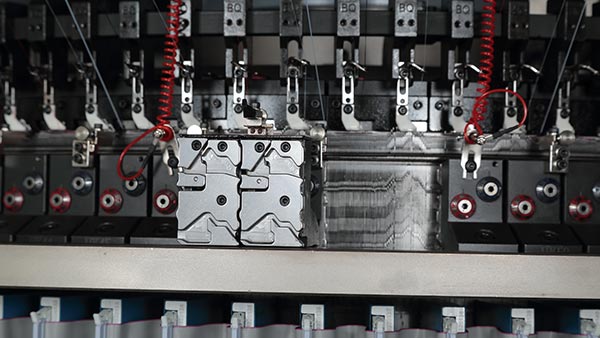

Electronic jacquard system
The machine equips an electronic jacquard system with a user manual, it’s easy to operate and assures accuracy. Using a USB device or disk to save and process the jacquard pattern

Robust machine frame, base thickness up to 120mm
The machine frame is made of aged Iron-Cast, and the thickness of base is up to 120mm. The machine's weight is about 1 ton more than others. It assures the machine's precision and stabilizes it during transportation and operation.

Wire race bearings
Wire Race Bearings is equipped. It highly reduces the running noise and electric energy consumption, and also increases the precision and smooth running of the machine, especially for large-diameter machines.

Strict assembling and testing inspection
The machine undergoes the strictest testing and inspection, the error of roundness and flatness is within 0.02mm.

Parts	Premium Standard Mostly import material	Advanced Standard Chinese Tier-1 Material	Economic Standard Chinese Tier-2 Material
Cam	WL Premier Central Stitch Adjustment	WL Advanced Central Stitch Adjustment	WL No Central Stitch Adjustment
Cylinder	BQ Tier-1 Material	BQ Tier-1 Material	BQ Tier-2 Material
Needle	Groz-Beckert	Golden Sharp	Golden Sharp
Sinker	Kern-Liebers	Kern-Liebers	Wang Da
Inverter	Nedic	INVT	RBCA
Motor	TECO	TECO	TECO
Oiler	Memminger-Iro PULSONIC 6 - Electric spray	LIKE WR3062- Electric or WR3003 - Air	TAI GUAN TG30B - Air spray
Feeder	Memminger-Iro NEO N9	SMG A229T	SMG APF20-T9
Lycra Feeder	SMG SER3-T5	SMG SER-T5	SMG SER-T5
Creels	FULONG Tube Normal 8 Cones Type	FULONG Tube Normal 8 Cones Type	JIA BAO SHI Tube Normal 8 Cones Type

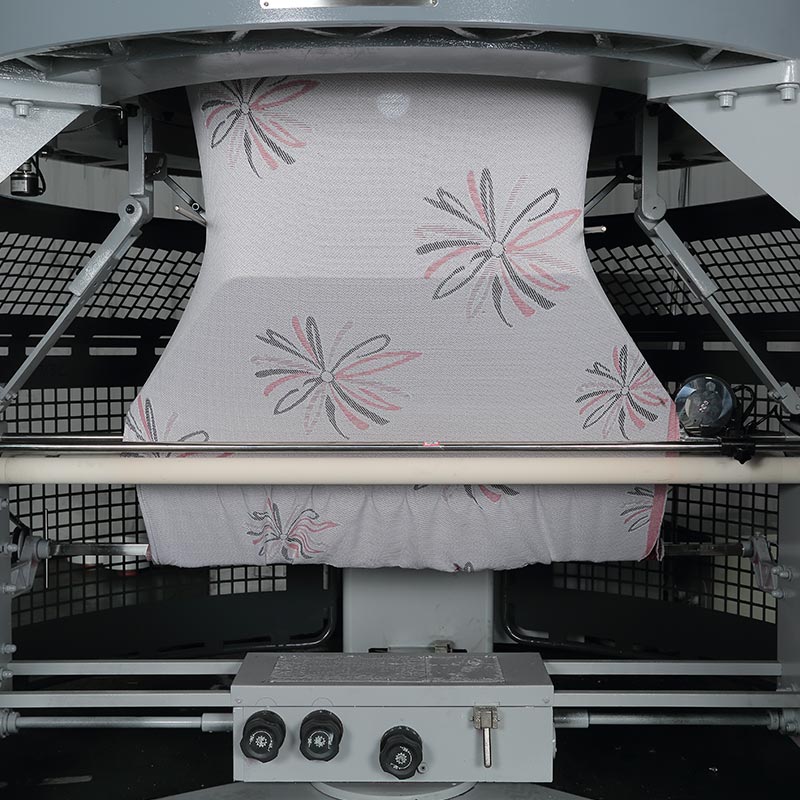

Take Down System	YUNG LEADER	YONGTAI	LICHENG

1. One Year Warranty – Not including consumables such as needles, sinkers, feeders, Lycra feeders, tooth belts.
2. On the prerequisite of guaranteed quality, more options can be customized according to your operational preference.

Fabric

Applications
